Products Description

SG series three phase dry type transformers are widely used in numerical control systems,Suitable for ac 50-60Hz, input and output voltage is not more than 500V three-phase power supply.All kinds of input and output voltage of the product, the connection group, the number and position of the adjustment tap (generally ±5%), the distribution of the winding capacity, the secondary single-phase winding, the use of the rectifier circuit,whether to take the shell, etc., can be carefully designed and manufactured according to the requirements of users.

ZSG series three phase rectifier transformers are used for rectifier equipment, charging, voltage regulation and DC power supply after rectifier.

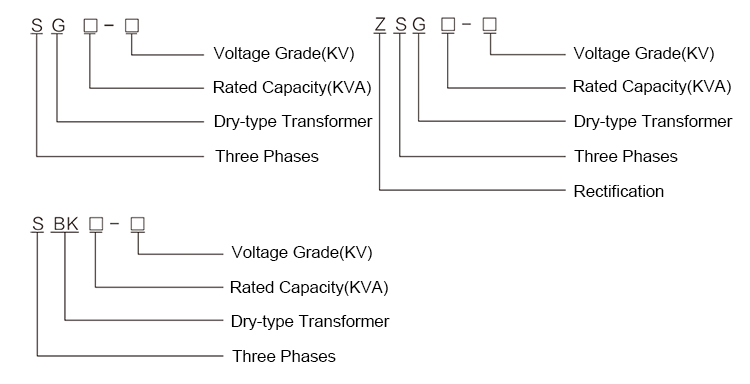

Model Explanation

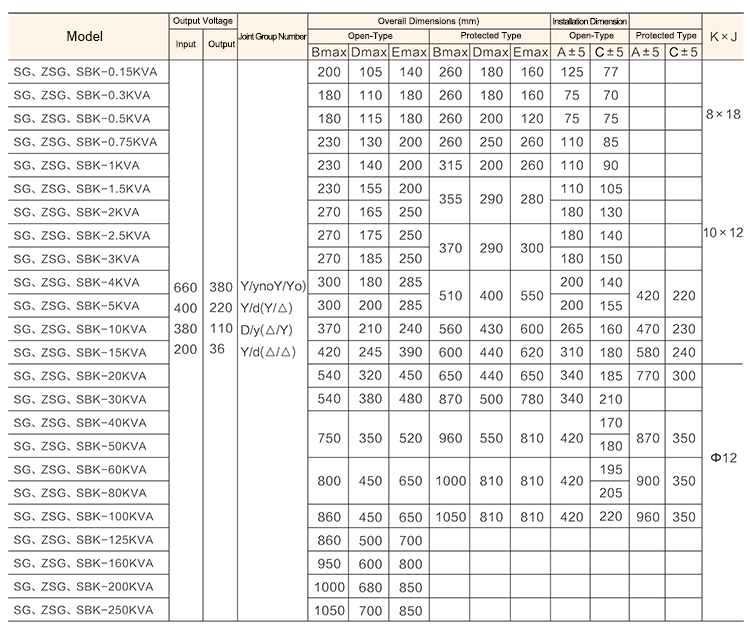

Technical Parameters

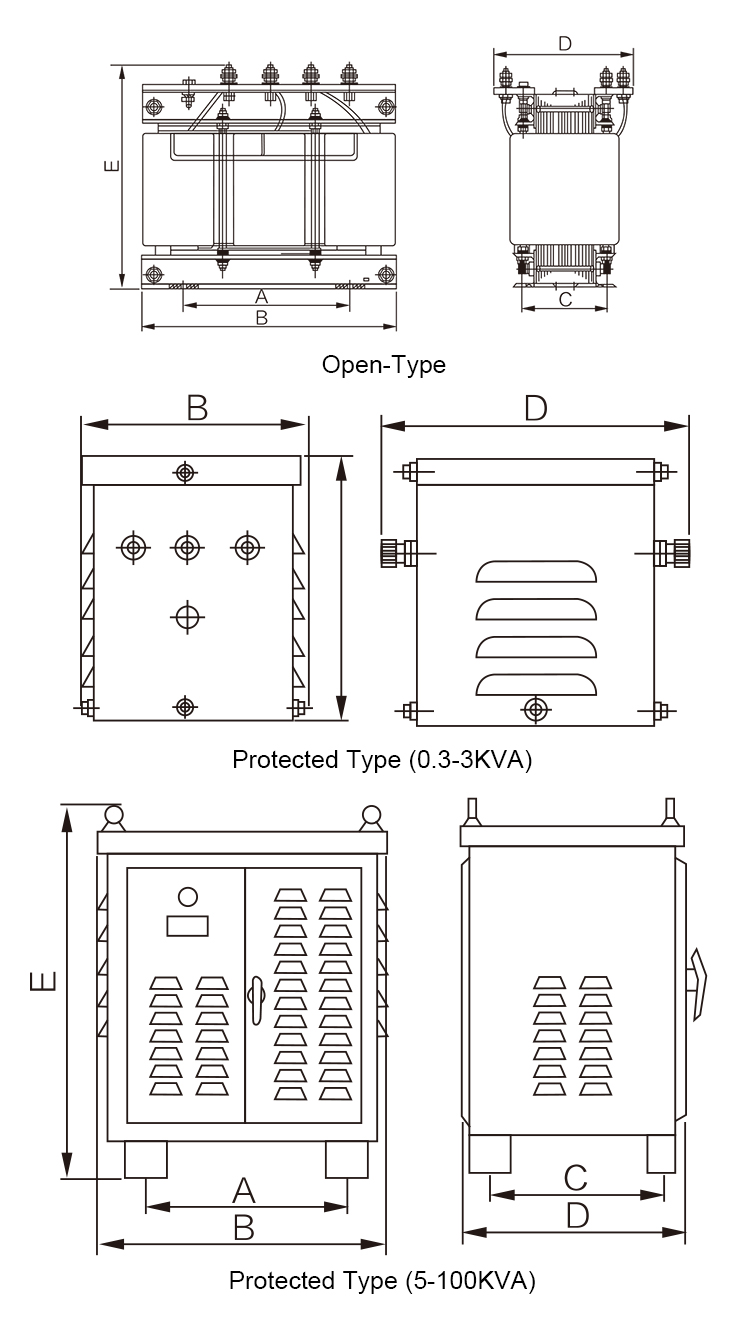

Dimension
