Product description
JBK5 transformers apply to be used as control power supply of mechanical equipments and electrical&electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 500V,output voltage up to 250V.Standard capacity is up to 2500VA,customized capacity up to 5000VA.
Features:
Compact size
Less weight
Easy wire connection
Wide application
Technical Parameters
| Type | Power | Overall Size | Installion size | Mounting Hole |
| (VA) | (B*D*E) (MM) | (A*C)(MM) | (K*J) (MM) | |
| JBK5-40 | 40VA | 78*72*90 | 56*46 | 4.6 |
| JBK5-63 | 63VA | 78*72*90 | 56*46 | 4.6 |
| JBK5-100 | 100VA | 85*75*96 | 64*62 | 4.6 |
| JBK5-160 | 160VA | 96*92*105 | 84*73.5 | 5.5 |
| JBK5-250 | 250VA | 96*100*104 | 84*85 | 5.8 |
| JBK5-300 | 300VA | 120*100*110 | 90*85 | 5.8 |
| JBK5-400 | 400VA | 120*100*122 | 90*85 | 7 |
| JBK5-500 | 500VA | 120*120*130 | 90*98 | 7 |
| JBK5-630 | 630VA | 150*110*140 | 122*90 | 7 |
| JBK5-800 | 800VA | 150*128*142 | 122*105 | 7 |
| JBK5-1000a | 1000VA | 150*190*142 | 126*155 | 7 |
| JBK5-1000b | 1000VA | 168*125*155 | 105*138 | 9 |
| JBK5-1600a | 1600VA | 170*225*155 | 140*176 | 7 |
| JBK5-1600b | 1600VA | 168*138*155 | 116*138 | 9 |
| JBK5-2000 | 2000VA | 190*160*160 | 172*195 | 7 |
| JBK5-2500 | 2500VA | 194*160*165 | 172*195 | 7 |

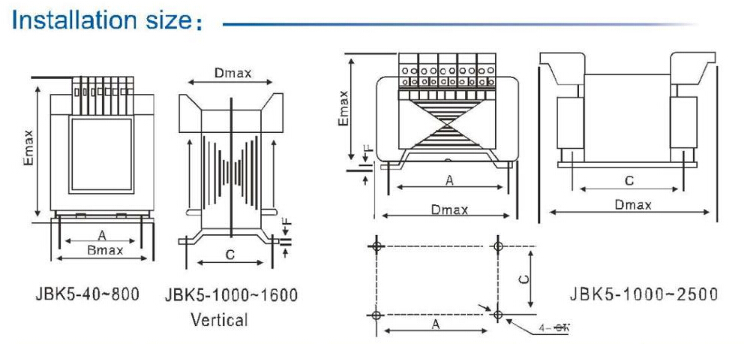

Overall dimensions
