Product Description

Bk-Series 150va 50/60Hz 220V/380V AC Control Transformer for Machine Tools

Structure character

According to different structures, BK transformer belongs to shell type, and according to the installation mode, it belongs to vertical type.

Working environment
1. Ambient air temperature: -5oC~+40oC, the highest monthly mean temperature should not exceed +30oC;

2. Altitude for installing place should not exceed 1000m;

3. When the ambient air temperature is +40, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25oC, and condensation on the product surface caused by temperature change should be taken into consideration.

Datasheet:

Primary voltage 220V 380VAC

Secondary voltage: 380V, 220V, 110V, 36V, 24V, 12V, 6V (TO BE CHOSEN)

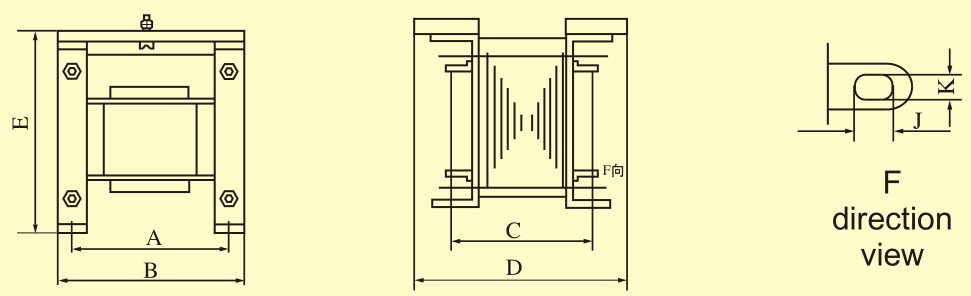

Dimension:

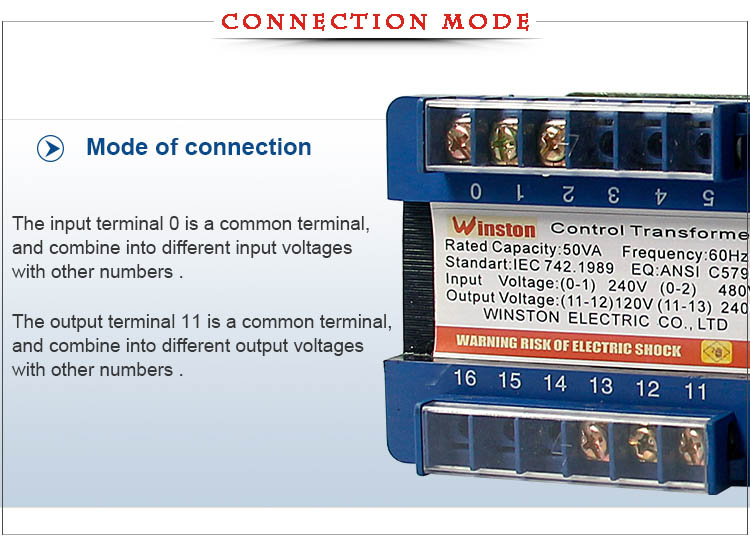

Connection:
