Product Description

The HB Series is a third-generation, purely on-line, intelligent UPS designed for networked computer rooms and small intelligent devices, measuring devices, industrial automation equipment and precision instruments in finance, communications, insurance, transportation, taxation, military, securities, energy, education, government and corporate systems. The HB series of UPS is the best choice for users of enterprise servers, small and medium sized LANs, small server rooms and other precision electronic equipment.

Product features

SPWM pulse width modulation technology, IGBT power modules and input and output isolation transformers provide a pure sine wave power supply with low distortion, free from grid fluctuations.

Double conversion technology and static electronic bypass technology to achieve zero switching time. With input and output over-voltage protection, input surge protection, phase sequence protection, battery over-charge and over-discharge protection, output overload short-circuit protection, over-temperature protection and many other system protection and alarm functions.

Super wide input voltage and frequency range to reduce the chance of battery discharge and prolong the service life of the battery.

Super cold start function, in the absence of utility power, can be full load for cold start, to meet the user's emergency needs.

Adopting instantaneous control mode and various feedback controls such as RMS, it achieves high dynamic regulation and reduces waveform distortion. Fully satisfies the jump from 0 to 100% load without switching to bypass and ensures stable and reliable output.

Extremely wide input voltage and frequency ranges reduce the chance of battery discharge and extend battery life.

Product features

User-friendly interface, no barriers to human-machine communication

Intuitive LCD display: UPS model, input and output voltage, frequency, load capacity, battery capacity, internal temperature, operating status, mode of operation and fault status.

The user-friendly human-machine interface, with a Chinese LCD display, provides a clear overview of the UPS's operating status and allows zero distance between human and machine communication.

Powerful compatibility

The wide utility input range and frequency range reduces the UPS's requirement for input utility power, making it compatible with any form of electricity, including applications for industrial power generation, wind power generation, etc.

The output is precisely zero-phase synchronised to the grid, meeting the high demand for many devices to be synchronised to the grid for work on rural grids or when powered by small oil-fired generators.

Intelligent communication tools for remote monitoring

RS232 and RS485 communication ports for truly versatile communication and remote monitoring. Optional dry contact interface with passive contacts effectively enables status monitoring of the UPS. The DB9 dry contact interface allows the main abnormal information of the UPS to be led through the dry contact.

The optional SNMP card, 100% remote monitoring and network management, allows for easy intelligent monitoring of the UPS, including point-to-point communication monitoring in the near range, communication monitoring in the medium range and network monitoring in the far range. This enables real-time monitoring of the UPS's operating status and parameters, automatic paging, e-mail and voice functions and remote switching of the UPS.

Highly environmentally friendly

Green rectifier and inverter technology is used to provide clean energy for users.

The whole machine adopts advanced anti-electromagnetic interference technology, which is in line with international standards and has excellent electromagnetic compatibility, minimising or even eliminating electromagnetic interference to the equipment.

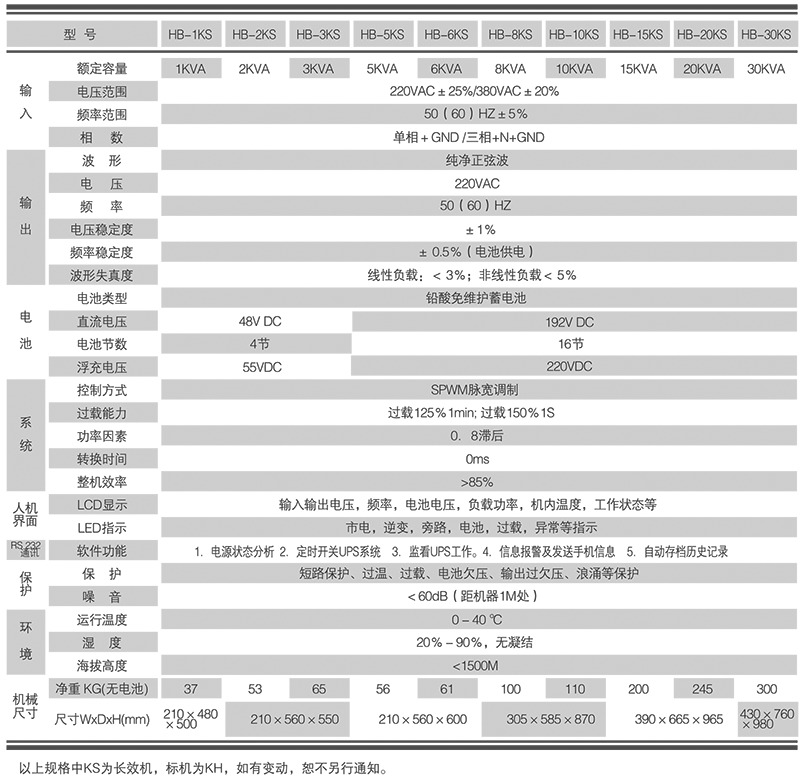

Technical parameters
