Product Overview

The HB-D series single-phase emergency power supply for fire fighting lamps and lanterns is a new generation of product developed by our company in accordance with the national standard GB 17945-2010. The EPS emergency power supply incorporates a variety of advanced software and hardware technologies, fully complies with the requirements of the national standards, and adopts high-speed 32-bit DSP digital control technology, the system is stable and reliable, with good scalability and maintainability, and can provide power supply for lamps and lanterns in intelligent emergency evacuation monitoring systems.

Product features

1. faster with DPS full digital control technology.

2. 6th generation IGBT inverter technology for more stable performance.

3. Sine wave AC output for emergency power supply, voltage stabilization, frequency stabilization, no noise and no pollution.

4. fire linkage, computer monitoring, fire centre control.

5. the output is completely isolated, safer and more reliable.

6. Superb man-machine dialogue function with large LCD display.

Product Benefits

1. modular design, easy construction and maintenance.

2. Fast power-down emergency function, switching time as short as 1.8ms.

3. Special anti-corrosion treatment of the casing, with a host life of more than 10 years.

4. advanced charge and discharge management, maintenance-free batteries can be recycled 300 ~500 times.

5. with input and output over-voltage protection, input surge protection, output overload, short-circuit protection, temperature protection, etc..

6. Battery patrol function for measuring individual parameters and displaying them on the display board.

Specification (power) range

0.5kW - 10kW

Single-phase input (220V, AC) Single-phase output (220V, AC) with.

(Standard) Wall mounted: HB-D-0.5kW, 1kW, 1.5kW, 2kW

                  Recessed: HB-D-0.5kW, 1kW, 1.5kW, 2kW

                  Floor standing: HB-D-0.5kW, 1kW, 1.5kW, 2kW, 3kW, 4kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW

Three phase input (380V, AC) single phase output (220V, AC) available in.

(Standard) Floor standing: HB-D-0.5kW, 1kW, 1.5kW, 2kW, 3kW, 4kW, 5kW, 6kW, 7kW, 8kW, 9kW, 10kW

Note: The latest national standard GB 17945-2010 "Emergency power supply for fire emergency lighting" standard provides for a standby time of 90 minutes. And comply with the implementation rules of compulsory product certification CNCA-C18-01:2014, the implementation rules of compulsory product certification CCCF-HBJ-02 requirements.

(Use: In addition to evacuation lighting for personnel, also for fire-fighting life-saving lighting).

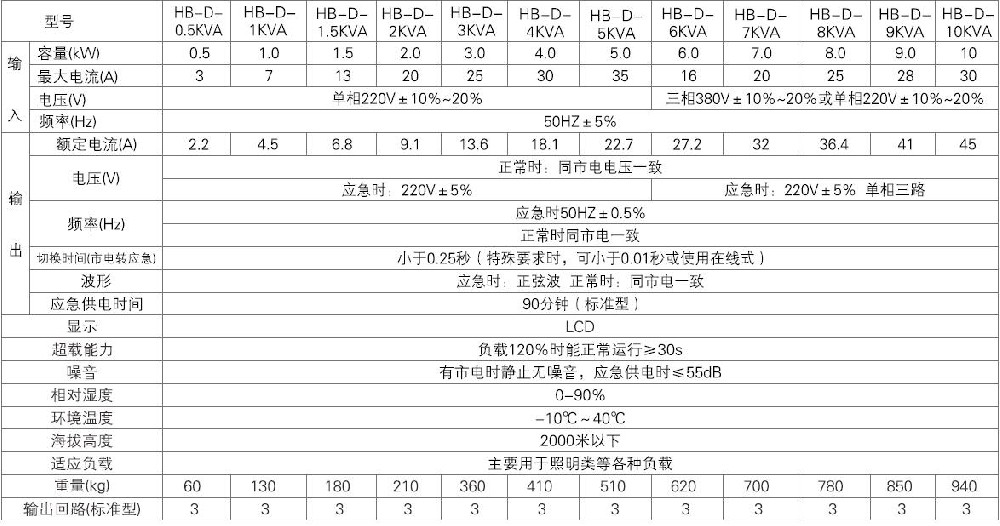

Technical specifications

Wiring instructions
