Model :
Number :
Weight :
TECHNOLOGY PARAMETER
Technology | Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
Input voltage | AC140-260V |
Output voltage | 220V±8% |
Phase | Single-Phase |
Frequency | 50-60Hz |
Adjust time | ＜1sec.(against 10% input voltage deviation) |
Protection over voltage | ＜250±2V |
Protection lack voltage | ＜185V±2V |
Delay | 5 second |
Temperature protection | 110°C±10°C |
Ambient temperature | -10~+45°C |
Relative humidity | ＜90% |
Wave form distortion | No additional wave form distortion |
Efficiency | ＞95% |
Dielectric strength | 1500V/min |
Insulation resistance | ≥5MΩ |
SPECIFICATION DIMENSIONS AND WEIGHT
Model | Power output | Unit(pcs) | Package size(mm) | G.W.(Kg) |
SRW-500-M | 500VA | 4 | 465x330x280 | 11.5 |
SRW-1000-M | 1000VA | 4 | 465x330x280 | 13.5 |
SRW-2000-M | 2000VA | 2 | 465x330x280 | 21.1 |
SRW-5000-D | 5000VA | 2 | 445x335x420 | 22.75 |
SRW-10000-D | 10000VA | 2 | 445x335x420 | 31.35 |
SRW-12000-D | 12000VA | 1 | 535x395x270 | 19.7 |

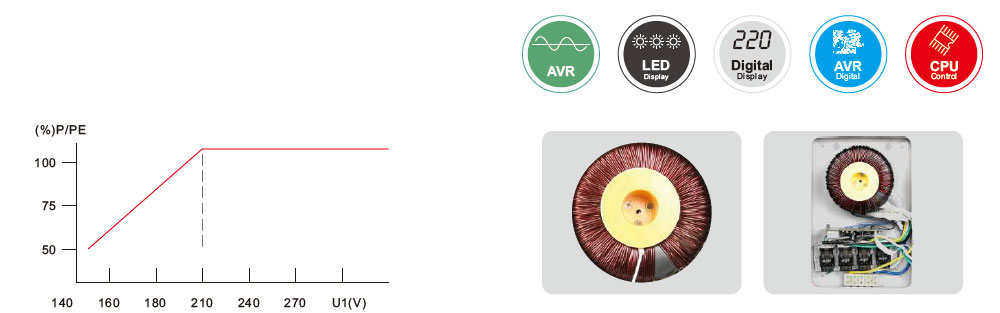

THE POWER CURVE OF OUTPUT

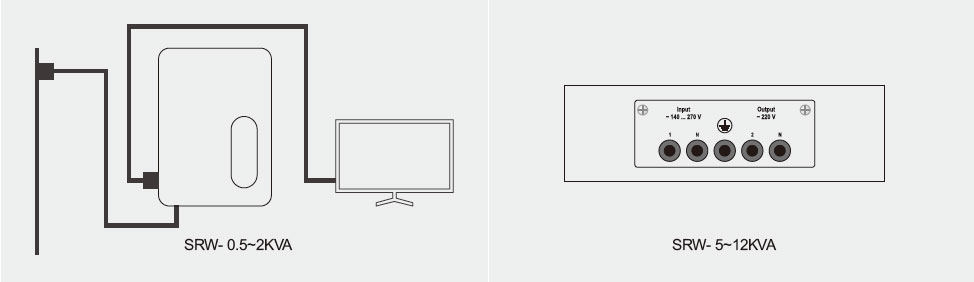

BACK PANEL
