Model :
Number :
Weight :
TECHNOLOGY PARAMETER
Technology | Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
Input voltage | AC140-260V |
Output voltage | 220V±1.5% OR 3.5% |
Phase | Single-Phase |
Frequency | 50-60Hz |
Adjust time | ＜1sec.(against 10% input voltage deviation) |
Protection over voltage | ＜250±2V |
Protection lack voltage | ＜185V±2V |
Delay | 3 second |
Temperature protection | 110°C±10°C |
Ambient temperature | -10~+45°C |
Relative humidity | ＜90% |
Wave form distortion | No additional wave form distortion |
Efficiency | ＞95% |
Dielectric strength | 1500V/min |
Insulation resistance | ≥5MΩ |
SPECIFICATION DIMENSIONS AND WEIGHT
Model | Power output | Unit(pcs) | Package size(mm) | G.W.(Kg) |
SVC-500VA | 500VA | 4 | 420x245x340 | 16.8 |
SVC-1000VA | 1000VA | 4 | 495x265x410 | 22.4 |
SVC-1500VA | 1500VA | 4 | 495x265x410 | 24.4 |
SVC-2000VA | 2000VA | 2 | 605x350x255 | 18.5 |
SVC-3000VA | 3000VA | 2 | 595x385x290 | 26 |
SVC-5000VA | 5000VA | 1 | 460x390x290 | 18 |
SVC-8000VA | 8000VA | 1 | 460x390x290 | 24 |
SVC-10000VA | 10000VA | 1 | 460x390x290 | 25.5 |
SDV-15000VA | 15000VA | 1 | 554x514x758 | 62 |
SDV-20000VA | 20000VA | 1 | 552x514x970 | 86.5 |
SDV-30000VA | 30000VA | 1 | 552x514x970 | 95 |

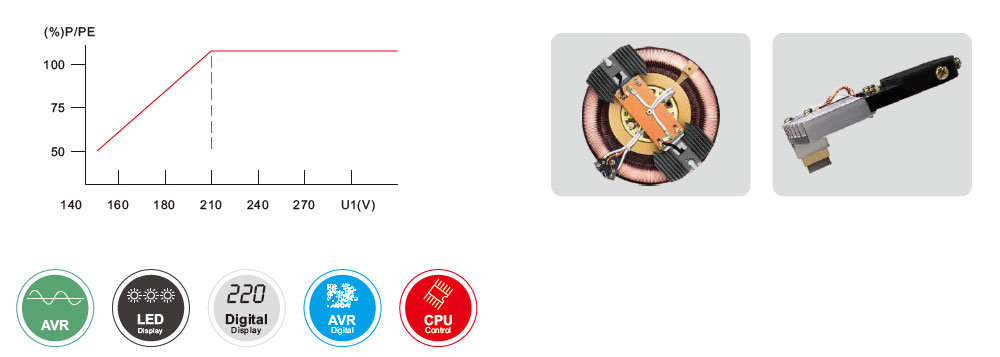

THE POWER CURVE OF OUTPUT
If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below

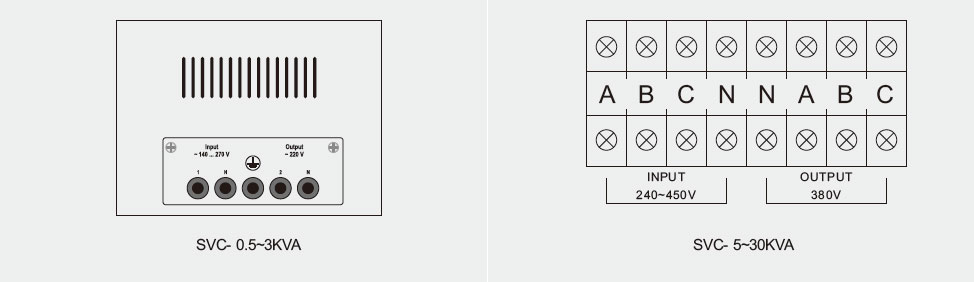

BACK PANEL
