Model :
Number :
Weight :
TECHNOLOGY PARAMETER
Technology | Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
Input voltage | AC140-260V |
Output voltage | 220V±1.5% OR 3.5% |
Phase | Single-Phase |
Frequency | 50-60Hz |
Adjust time | ＜1sec.(against 10% input voltage deviation) |
Protection over voltage | ＜255±2V |
Protection lack voltage | ＜185V±2V |
Delay | 3 second |
Temperature protection | 110°C±10°C |
Ambient temperature | -10~+45°C |
Relative humidity | ＜90% |
Wave form distortion | No additional wave form distortion |
Efficiency | ＞95% |
Dielectric strength | 1500V/min |
Insulation resistance | ≥5MΩ |
SPECIFICATION DIMENSIONS AND WEIGHT
Model | Power output | Unit(pcs) | Package size(mm) | G.W.(Kg) |
SDW-500-D | 500VA | 4 | 455x330x350 | 19.2 |
SDW-1000-D | 1000VA | 4 | 455x330x350 | 25.84 |
SDW-3000-D | 3000VA | 1 | 445x330x210 | 13.26 |
SDW-5000-D | 5000VA | 1 | 445x330x210 | 16.8 |
SDW-8000-D | 8000VA | 1 | 535x395x270 | 24.95 |
SDW-10000-D | 10000VA | 1 | 535x395x270 | 28.55 |

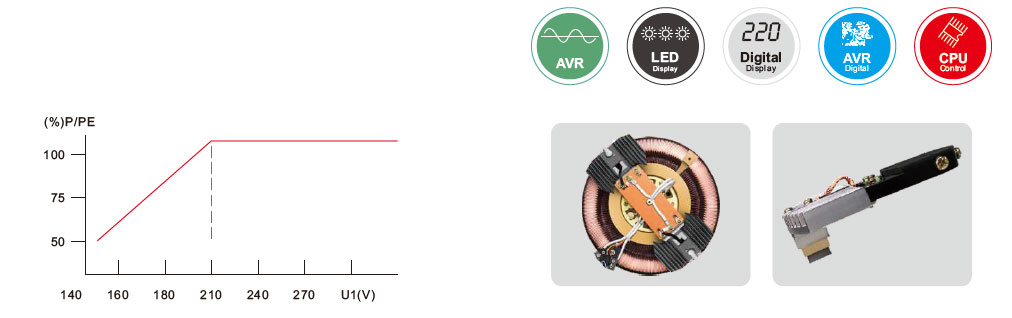

THE POWER CURVE OF OUTPUT
If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below

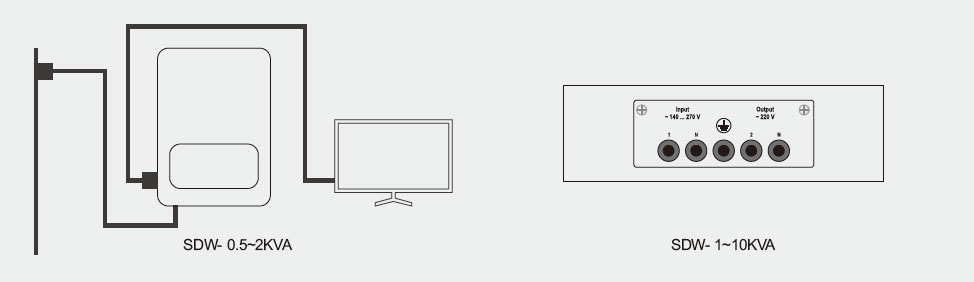

BACK PANEL
