Model :
Number :
Weight :
TECHNOLOGY PARAMETER
Technology | Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
Input voltage | Single phases: 175-265V Three phases four-line |
175V-265V( phases voltage) 304V-456V(Line -voltage) | |
154V-286V(phases voltage) 270V-490V(Line -voltage) | |
Output voltage | Single phases:220V;Three phases:380V; |
Output deviance | 1-5%( Adjustable) |
Frequency | 50-60Hz |
Efficiency | ≥95%(Power > 50KVA) |
Response time | ≤1.5S |
Ambient temperature | -10°C~+40°C |
Insulation resistance | ≥5MΩ |
Electricalintensity | Without breakdown and |
flashover phenomena at power frequency sine voltage 2000V for 1 min | |
Overload | Double rated current,one min |
Waveform distortion | Non-lack fidelity wareform |
Protect | Overvoltage,overcurrent,feed phases |
SPECIFICATION DIMENSIONS AND WEIGHT
Model | Unit(pcs) | Package size(mm) | G.W.(Kg) |
SCB-30KVA | 1 | 400*780*800 | |
SCB-40KVA | 1 | 400*780*800 | |
SCB-50KVA | 1 | 400*780*800 | |
SCB-60KVA | 1 | 400*780*800 | |
SCB-80KVA | 1 | 400*780*800 | |
SCB-100KVA | 1 | 550*1000*120 | |
SCB-120KVA | 1 | 550*1000*120 | |
SCB-150KVA | 1 | 550*1000*120 | |
SCB-180KVA | 1 | 550*1000*120 | |
SCB-210KVA | 1 | 600*1450*1200 | |
SCB-250KVA | 1 | 600*1450*1200 | |
SCB-300KVA | 1 | 600*1450*1200 |

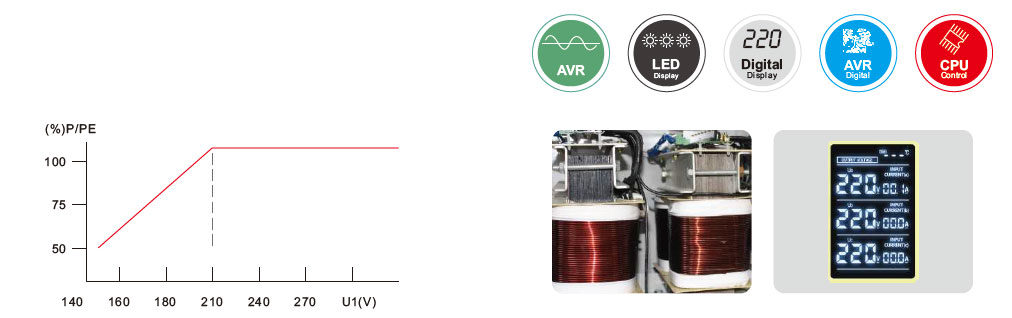

THE POWER CURVE OF OUTPUT
If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below

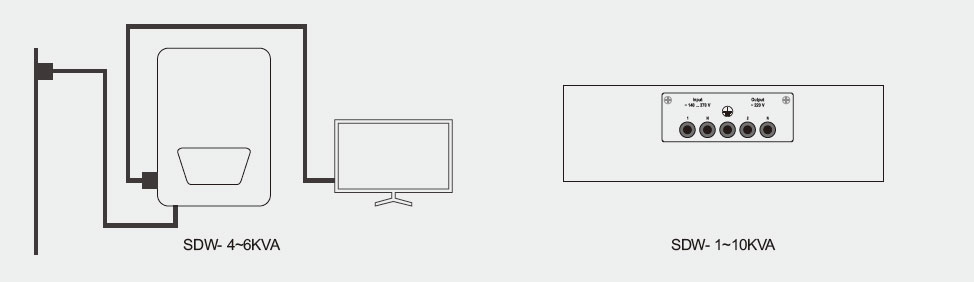

BACK PANEL
