Model :
Number :
Weight :

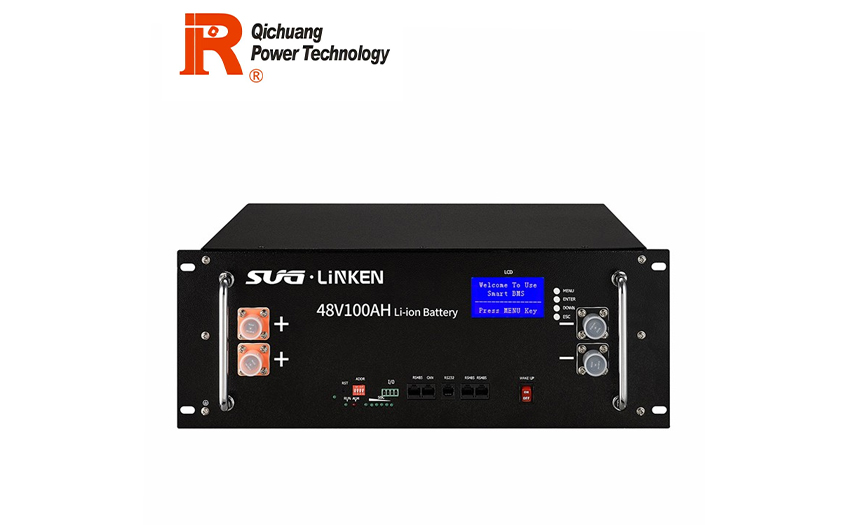

SBS series rack-mounted energy storage batteries use high life and environmentally friendly lithium iron phosphate batteries, equipped with high-performance BMS for effective management of the battery cells, with a wider range of performance and application advantages compared to traditional batteries
Product Features
※ High energy ratio, friendly interface, independent cooling, free combination
※ A+ grade battery cells, precision grouping
※ CAN/RS485/WIFI/4G/Bluetooth communication
※ Support customized BMS protection board
※ Precision iron case, guarantee the capacity of the battery core
Application Scenario
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, backup power supply, UPS
※ Telecom equipment, communication equipment, fire-fighting system, security and defence system, power station
Technical specifications | |
Model | SBS-100AH |
Capacity | 4.8KWH |
Conventional discharge current | 100A |
Max. discharge current | 100A |
Operating voltage | 40.5-53.25VDC |
Standard voltage | 48VDC |
Max. charging current | 100A |
Max. charging voltage | 53.25V |
Recommended depth of discharge | 0.9 |
Working humidity | 20-60% |
Mounting method | Cabinet or wall mounted |
Level of protection | IP20 |
Maximum number of parallel connections | 15 |
Warranty | 5 Years |
Communication | CAN / RS485 / WIFI / 4G / Bluetooth |
Size | 484*410*178 |
Weight | 39.5kg |
