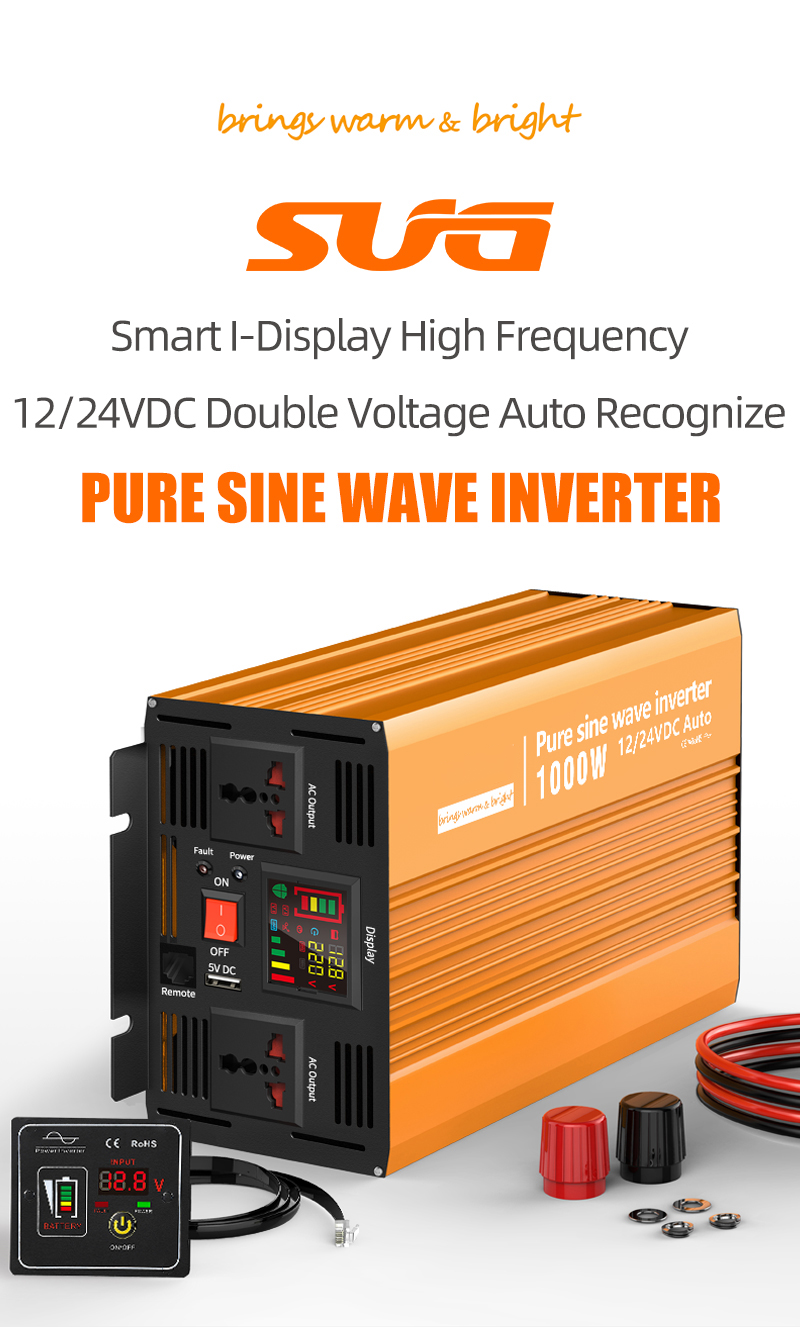

Product Feature:
1.it is 500w-1000w
2.pure sine wave output with DC-AC
3.2 years warranty
4.12/24v double input voltage
5.100/110/115/120/220/230vac optional
6.EU/USA/Japan/UK/Australia/Universal socket optional
7.CE/FCC/ROHS/PSE/ETL and pass ISO
8.sufficient power watt with original imported chip,IGBT,MOSFET
9.accept OEM/ODM
Specification:
| Model | SGPI-1000A-122 | SGPI-1000A-242 | |
| Rated Power | 1000W | ||
| Surge Power | 2000W(few seconds) | ||
| Input Voltage | 12VDC | 24VDC | |
| 24VDC | |||
| Output Voltage | 220VAC±5% | ||
| USB Port | 5V 2.4A | ||
| Frequency | 50Hz±3 | ||
| Output Waveform | Pure Sine Wave | ||
| Soft Start | YES | ||
| AC Regulation | THD＜3%(Linear Load) | ||
| Output Efficiency | 92% MAX | ||
| DC Voltage Range | 10-15.5V | 20-31V | |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | |
| Cooling Way | Intelligent Cooling Fan | ||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | ||
| Working Temperature | -10℃ - +50℃ | ||
| Net Dimension | 320*171*103mm | ||
| Inner Box Dimension | 395*230*170mm | ||
| Meas./Ctn | 53.5*47*40.7cm / 6pcs | ||
| N.W./Unit | 3.1kg | ||
| G.W./Ctn | 23KGS | ||
| Packing | CARTON | ||
| Warranty | 2 Years | ||
