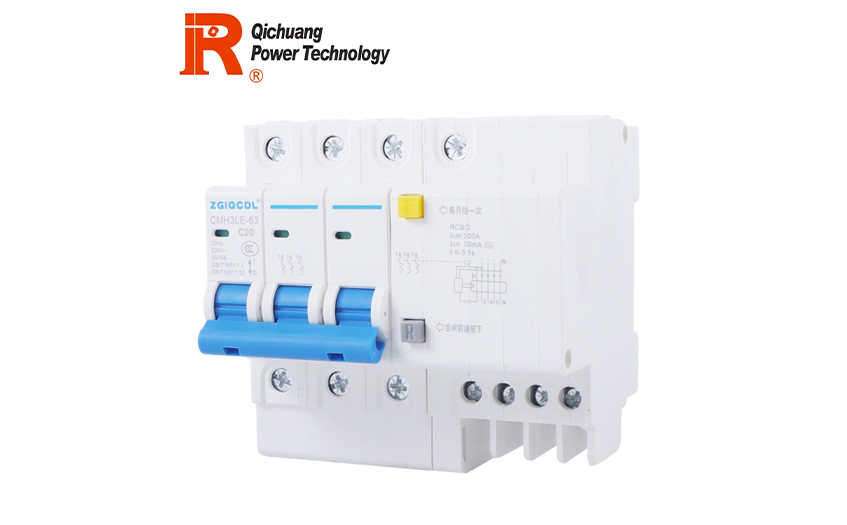

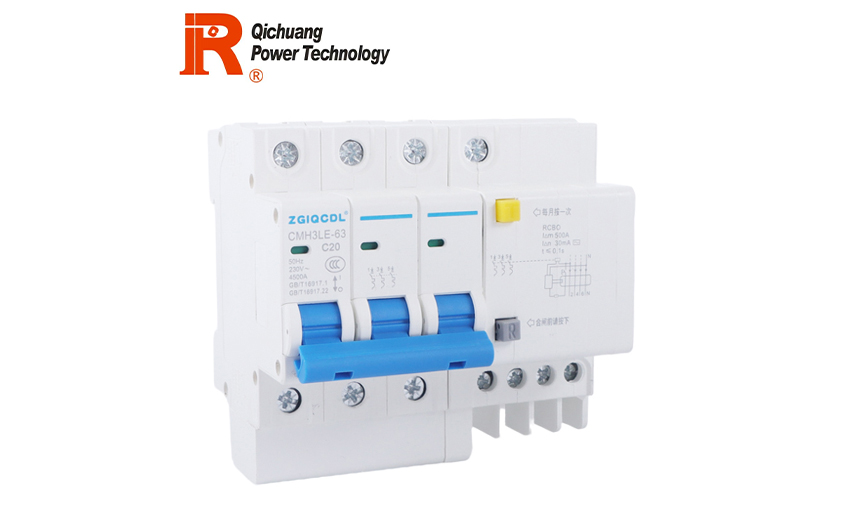

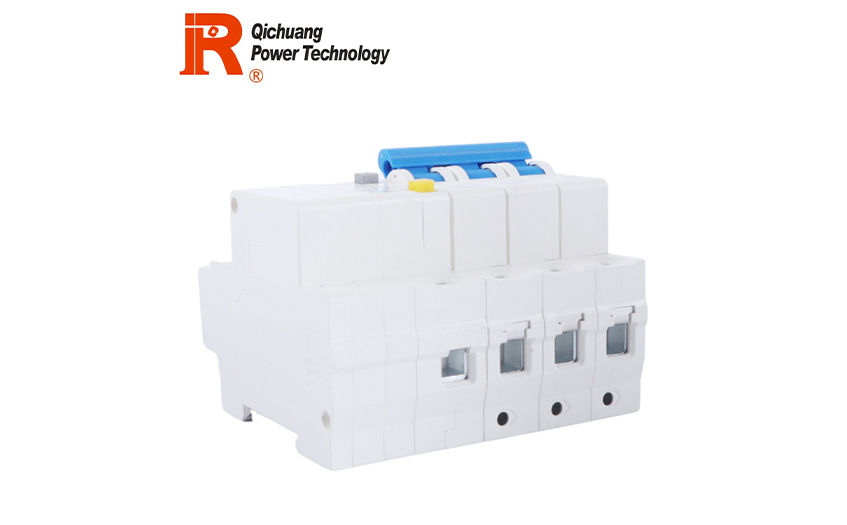

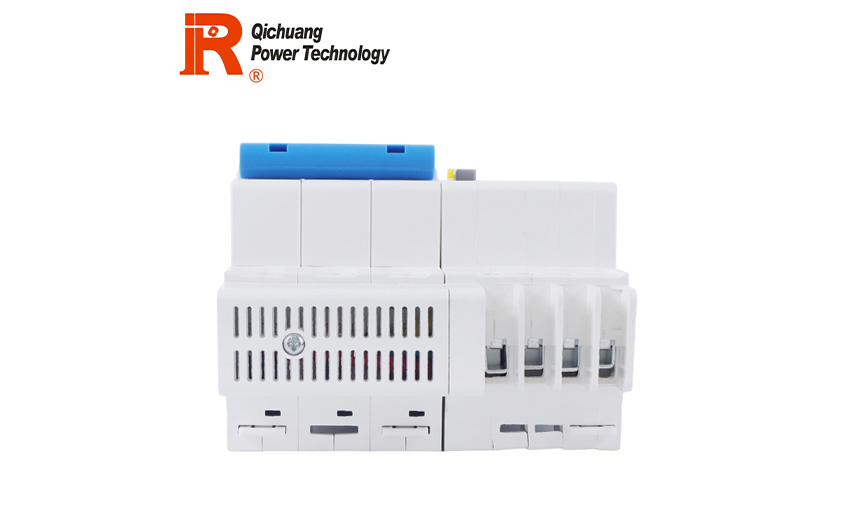

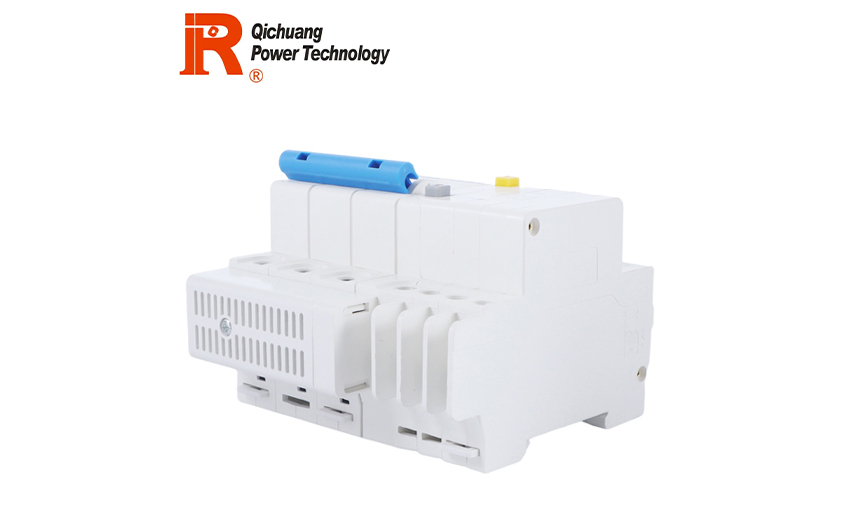

CMH3LE-63 series small earth leakage circuit breaker is suitable for AC frequency 50Hz, rated working voltage AC240V/AC400V, rated working current up to 63A and below in the distribution line, when personal electric shock or grid leakage current exceeds the specified value, the earth leakage circuit breaker can quickly cut off the faulty power supply in a very short time to protect the safety of personal and electric equipment. CMH3LE-63 series small earth leakage circuit breaker has advanced structure, reliable performance and the shell is made of impact resistant and high flame retardant material. It is mainly used for overload, short-circuit and leakage protection of lighting, distribution lines and equipment in office buildings, residences and similar buildings, and can also be used for infrequent conversion of lines to start under normal conditions.

Main parameters and technical performance

● Rated current (In): 6A, 10A, 16A, 20A, 25A, 32A for shell-frame grade current 32A; ● 6A, 10A, 16A, 20A, 25A, 32A for shell-frame grade current 63A.

●Shell frame grade current 63A is: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.

● Rated residual action current In: 0.03A, 0.05A, 0.1A, 0.3A.

● Divided by number of poles and current circuits.

O single-pole two-wire residual current-acting circuit breakers (1P+N).

O two-pole residual current-activated circuit breakers (2P).

O three-pole residual current-acting circuit breakers (3P).

O three-pole, four-wire residual current-activated circuit breakers (3P+N).

O four-pole residual current-activated circuit breakers (4P).

● By instantaneous striker characteristics: C type (5~10) In, D type (10~14) ln.

● Rated voltage Un (V): single-pole two-wire, two-pole 230V; three-pole, three-pole four-wire, four-pole 400V.

●Rated short-circuit capacity Icn (A): shell-frame rated current 32A for: 4500; shell-frame rated current 63A for: 4500

● Rated residual on and off capacity Im (A): 2000.

● Rated residual non-action current Ino: 0.1ln.

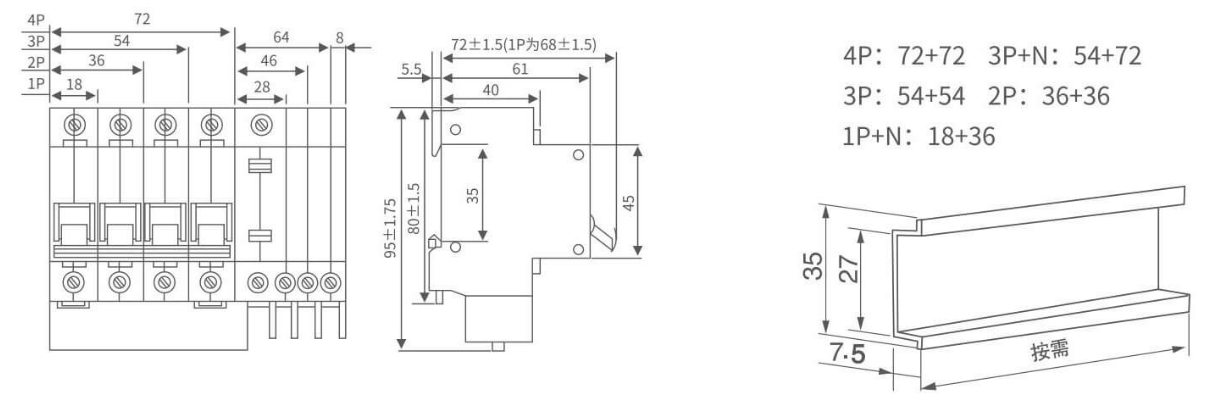

Form and mounting dimensions
